Commercial drainage case study · Nashville

A working drainage path through an active parking lot.

A mixed-use commercial property on 21st Avenue South needed more than another surface patch. Pavement Solutions completed a subsurface drainage retrofit tying a new catch basin into the existing system, then restored the driving surface at grade.

Discuss a drainage problem Call (615) 319-3671

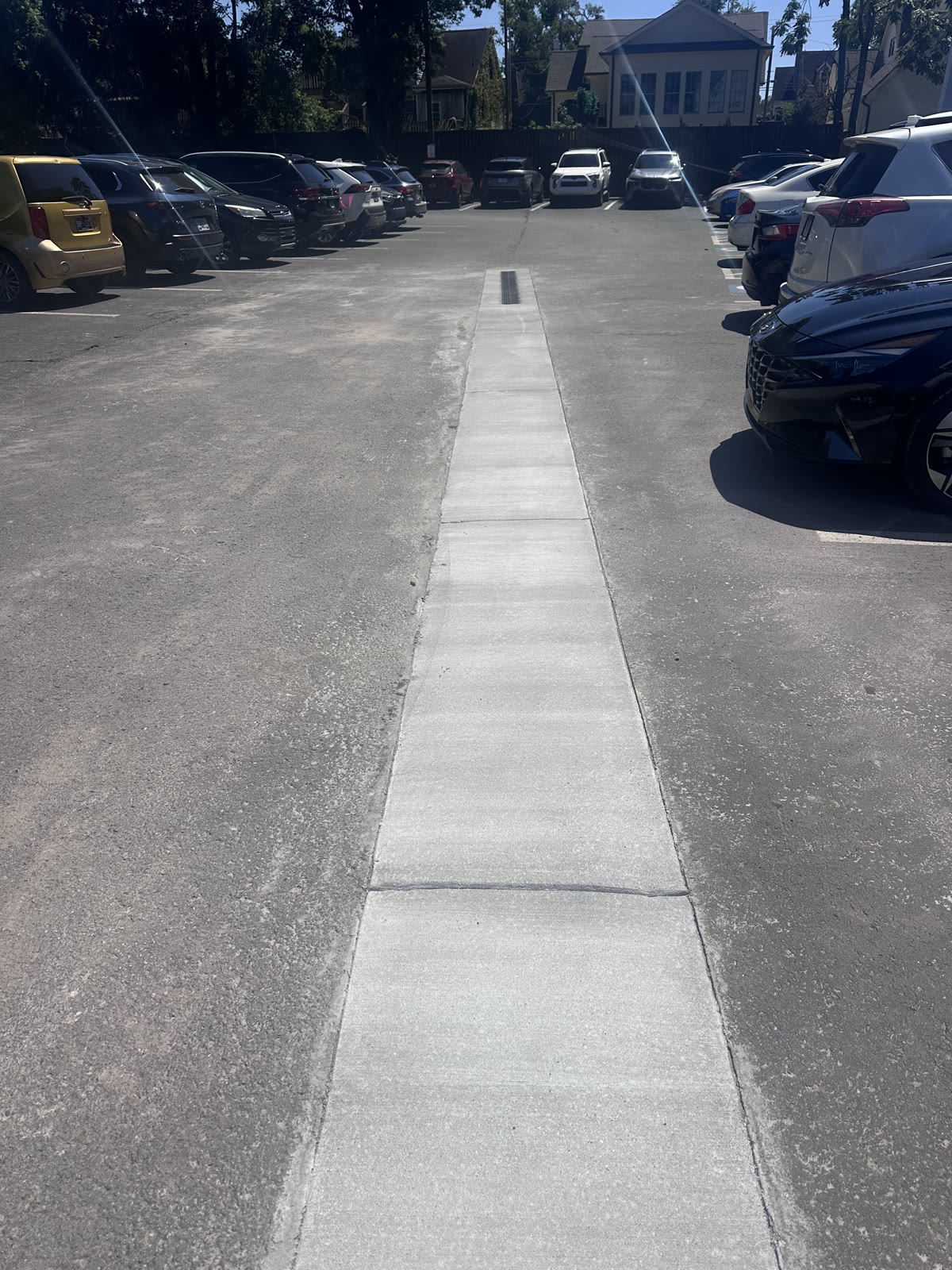

Completed concrete drainage channel running through a Nashville commercial parking lot — Completed channel connecting the new and existing drainage points.

234linear feet of asphalt removed

220linear feet of 8-inch HDPE pipe

13linear feet of heavy-duty trench drain

5,000PSI concrete restoration

The project

Drainage repair that reached below the asphalt

The August 2026 work created a defined collection path through a 1.66-acre commercial site instead of treating the visible pavement symptoms alone.

Open the channel

Utilities were located before approximately 234 linear feet of asphalt was saw-cut and removed. The crew excavated a 24-inch-wide path across the lot.

Build the drainage route

A new catch basin was connected to the existing basin with approximately 220 linear feet of 8-inch corrugated HDPE pipe. Thirteen linear feet of heavy-duty 8-inch trench drain completed the intake.

Restore the surface

The pipe channel was backfilled with 5,000 PSI concrete and broom-finished at pavement grade. Removed material was hauled to an approved off-site facility.

Finished work

One connected system, end to end

The completed route carries water from the trench drain through the new basin connection while keeping the lot usable at the surface.

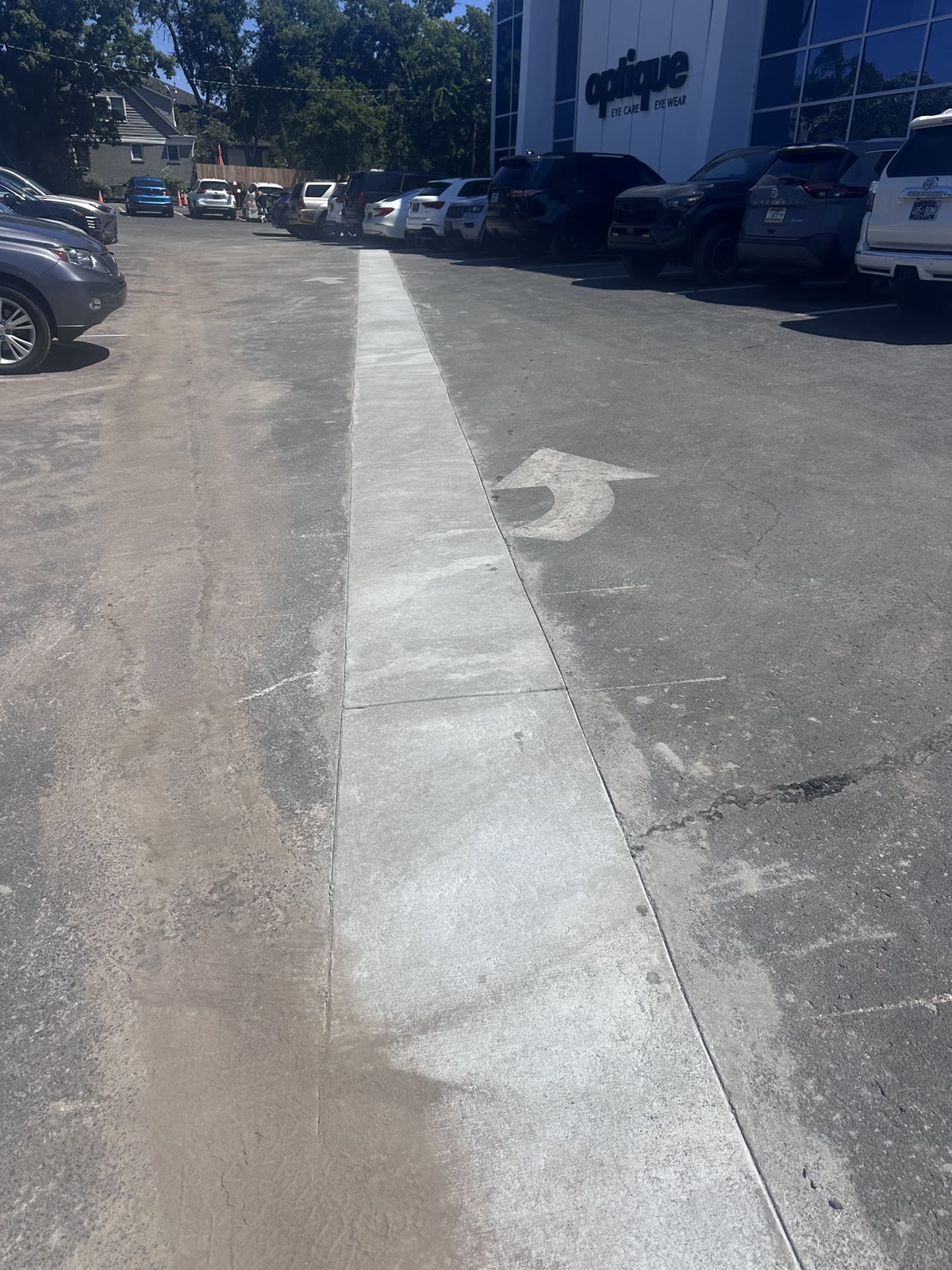

Long concrete drainage retrofit through a busy commercial parking lot — Concrete restoration follows the new subsurface pipe route.

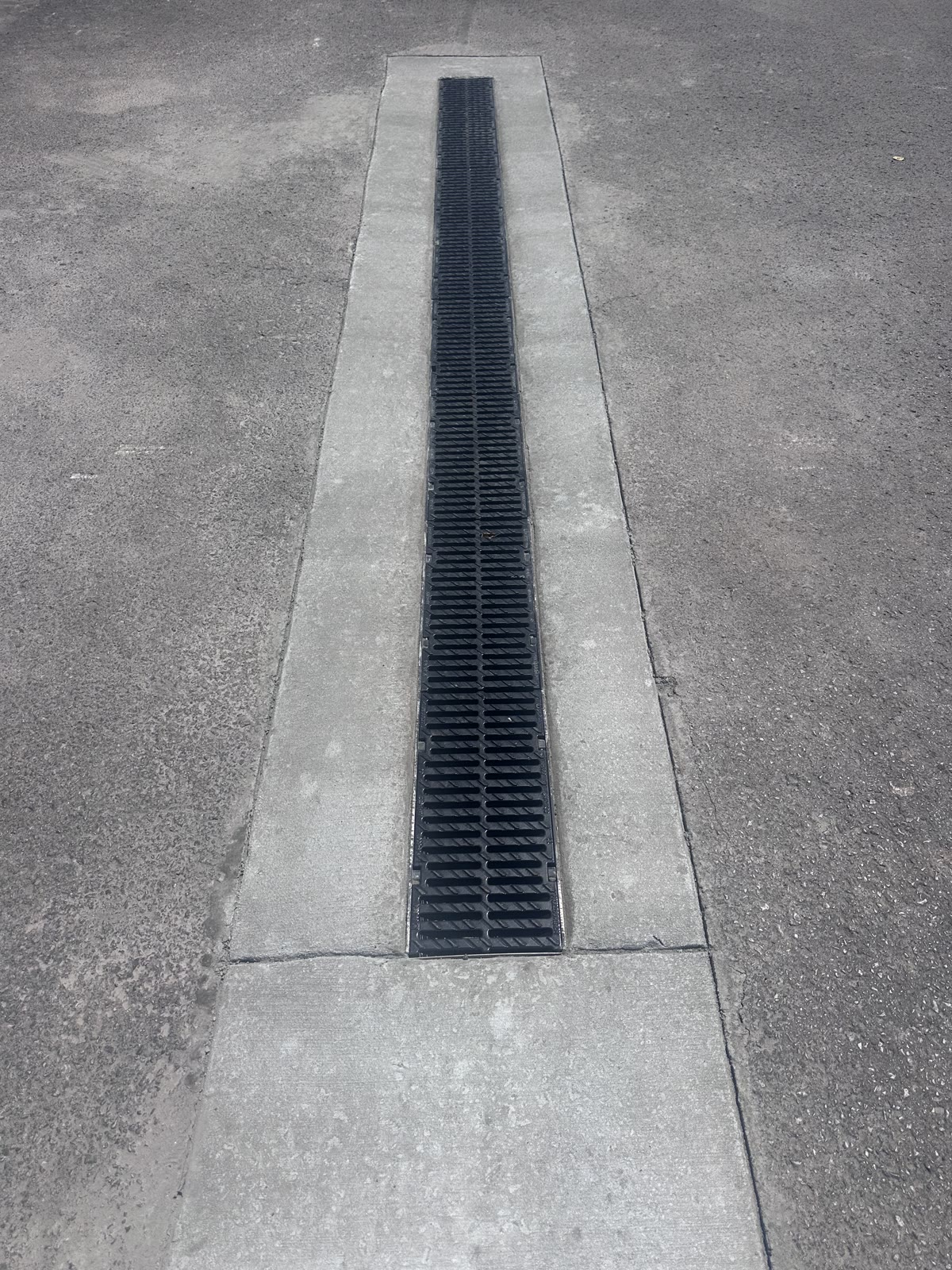

Heavy-duty trench drain set into a concrete channel — Heavy-duty trench drain set at pavement grade.

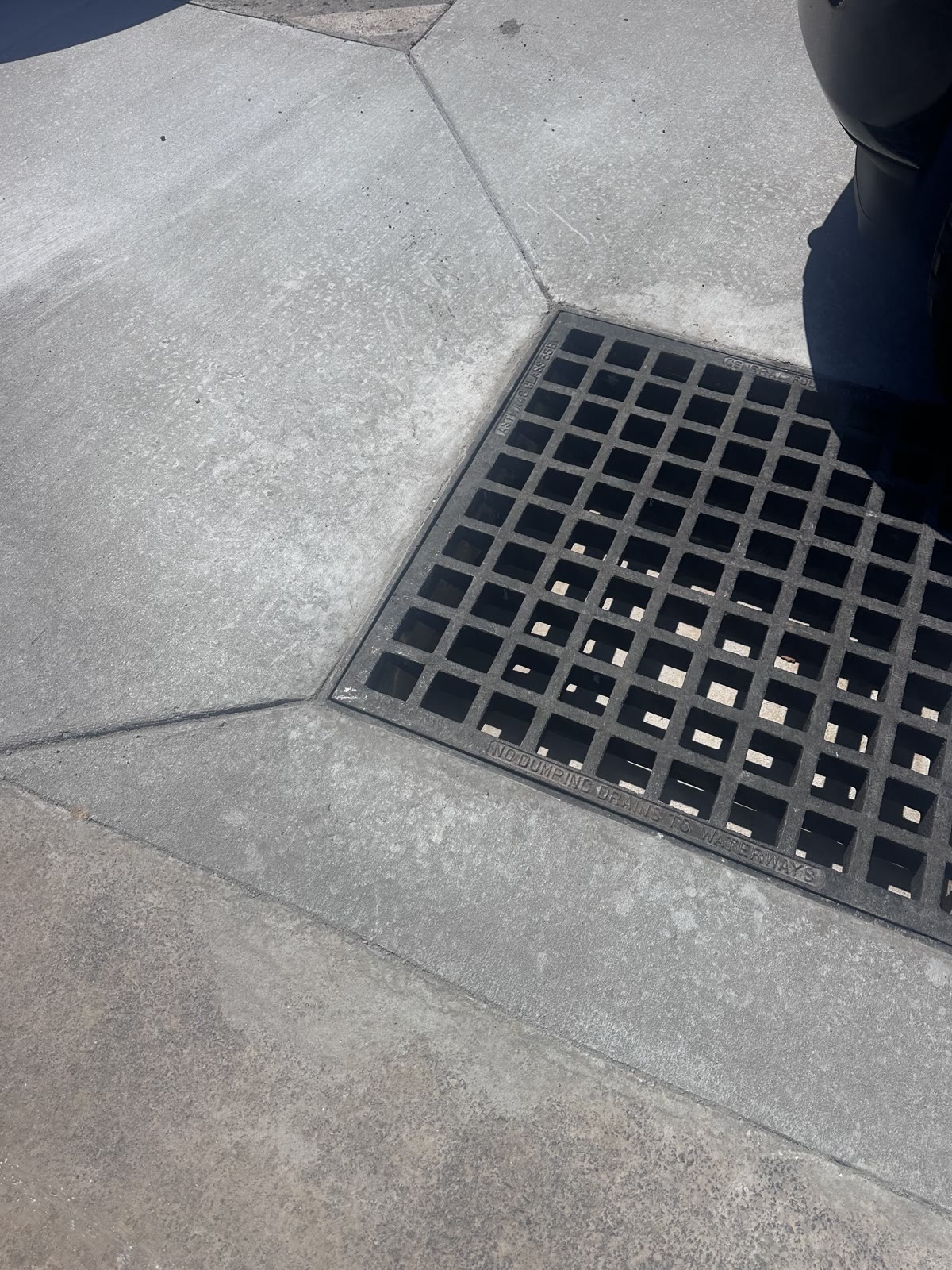

New commercial catch basin surrounded by finished concrete — New catch basin connection and finished concrete.

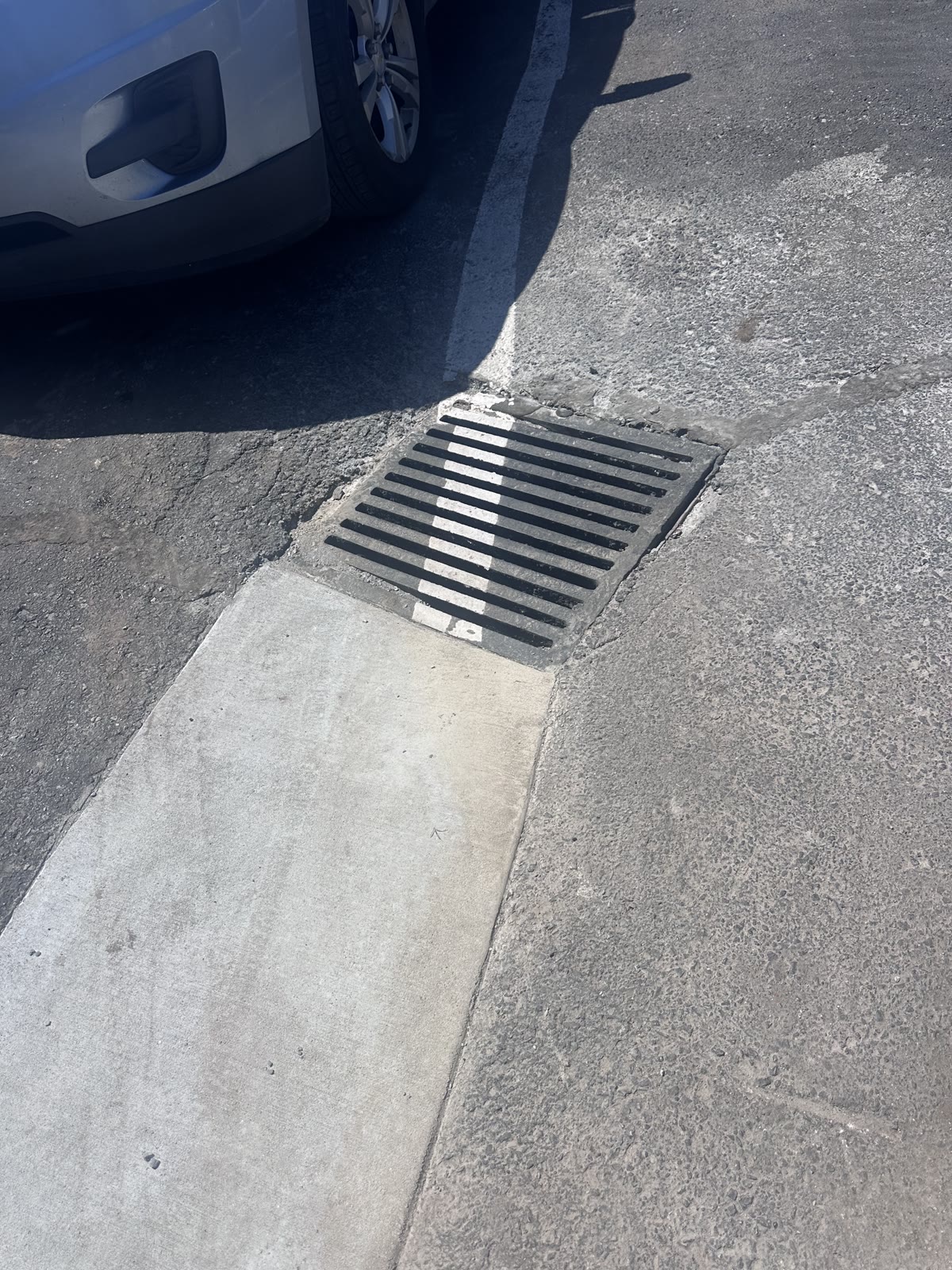

Completed trench drain transition between asphalt and concrete — Clean transition across asphalt, concrete, and the collection point.

Field proof

The rain test

After completion, the system was recorded during rainfall with water moving into the new trench drain. It is the part of the project that a finished photo cannot show.

Planning a commercial drainage repair?

Send a few photos and the property address. Pavement Solutions can walk the site and scope the pavement, concrete, and drainage work together.

Field video recorded after completion during active rainfall.
